Fulldome VJ

FreeFrame GL (FFGL) plugins
to boost your Fulldome VJ set

FDVJ:DM:

Designed to be applied to Domemaster videos (Azimuthal Equidistant)

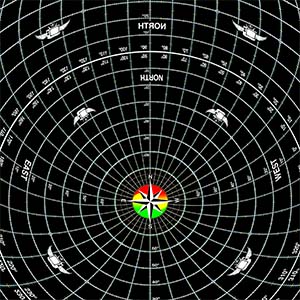

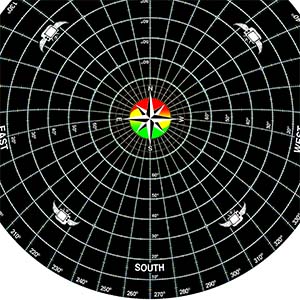

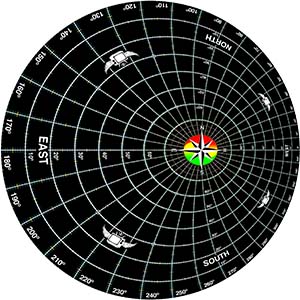

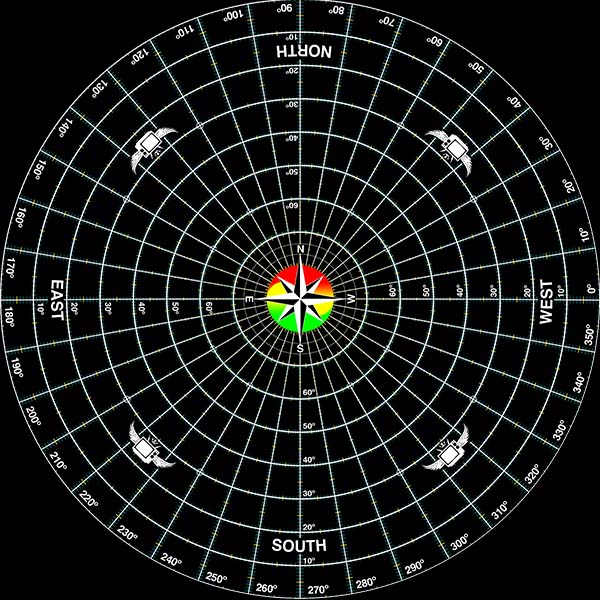

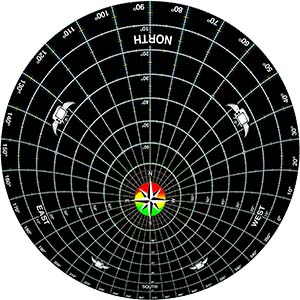

FDVJ:DM:Master

Any adjust needed for a Domemaster frame.
Azimuth, tilt, splin, horizon, Point of View offset, source frame mirror.

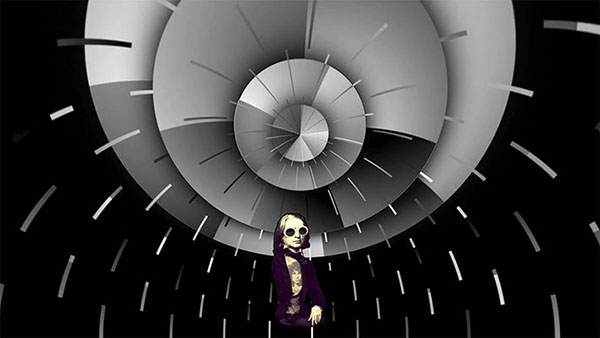

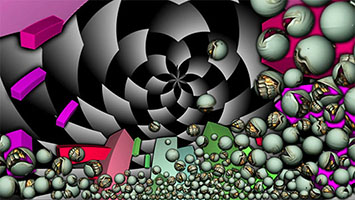

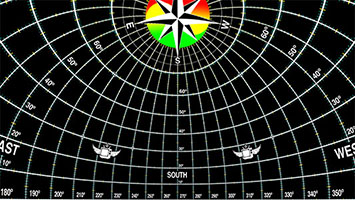

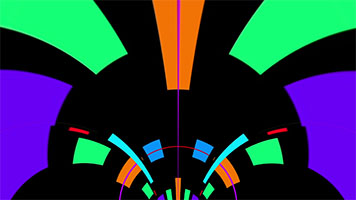

FDVJ:DM:ToHD

Preview Domemaster medias in 16:9, 16:10, Full HD, 4K, ...
Features Stereographic and Gnomonic projection, zoom, tilt and spin.

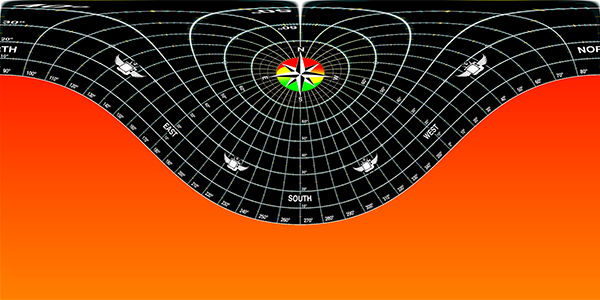

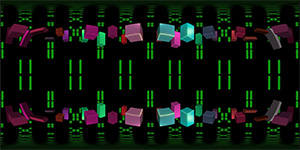

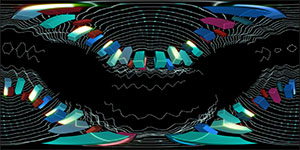

FDVJ:DM:ToPano

Convert Domemaster medias to Equirectangular 360
Use your Dome medias for VR and 360 movies. Features tilt, spin and mirror

FDVJ:Pano:

Designed to transform 360 Panorama videos (Equirectangular)

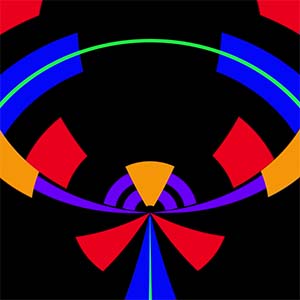

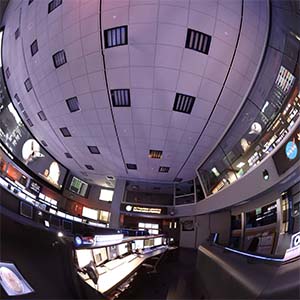

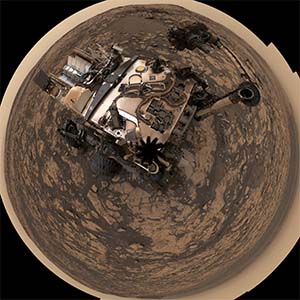

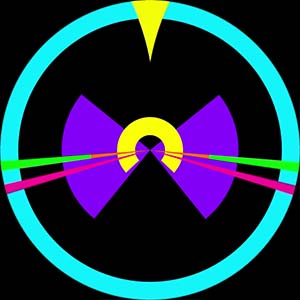

FDVJ:Pano:ToDome

Reproject 360 equirectangular medias for Fulldome.
Supports mono, stereo, EAC (YouTube Equi-Angular Cubemap), zoom, tilt and spin.


Samples by NASA and Isha Hening

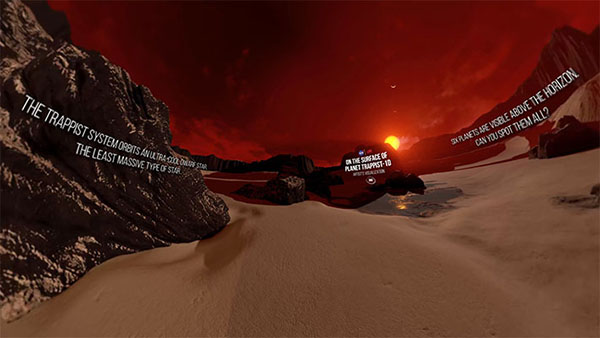

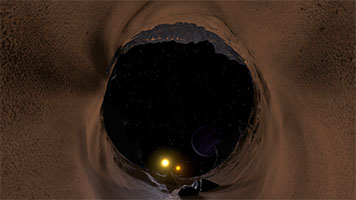

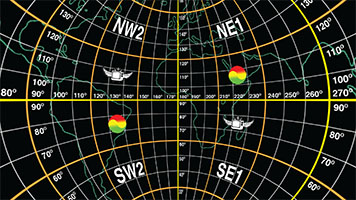

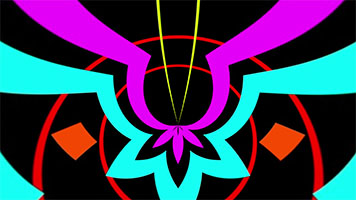

FDVJ:Pano:ToHD

Preview 360 equirectangular medias in 16:9, 16:10, Full HD, 4K, ...
Features Stereographic and Gnomonic projection, zoom, tilt and spin.
Supports mono, stereo, EAC (YouTube Equi-Angular Cubemap).

FDVJ:HD:

Designed to transform traditional HD videos into Domemaster format

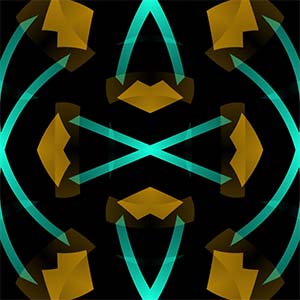

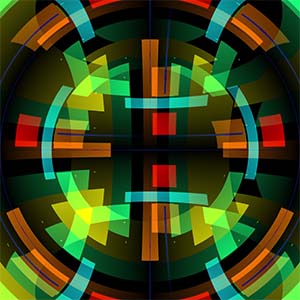

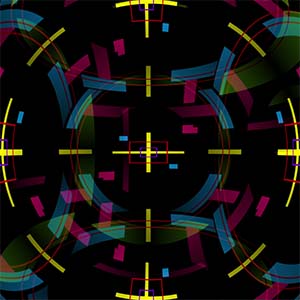

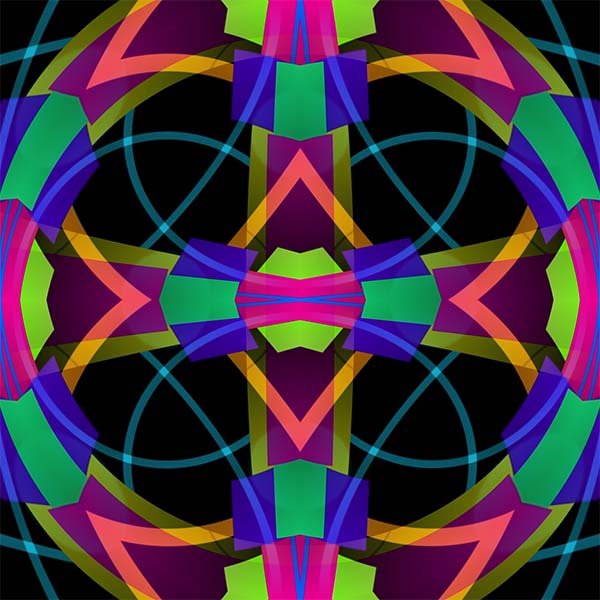

FDVJ:HD:Spherize

Applies the video with box mapping over the dome. Evenly distributed the texture around as a cube.


Samples by Isha Hening

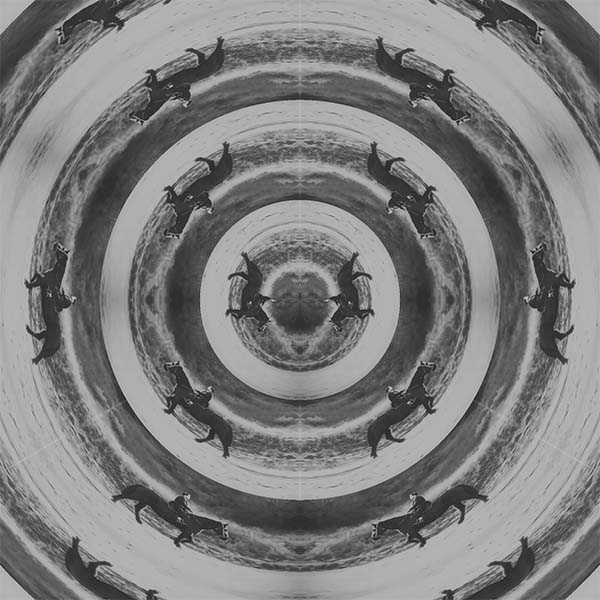

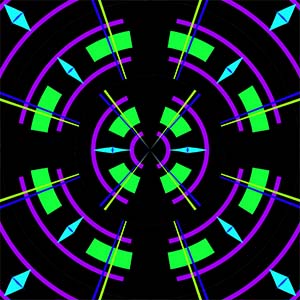

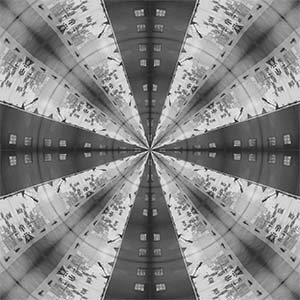

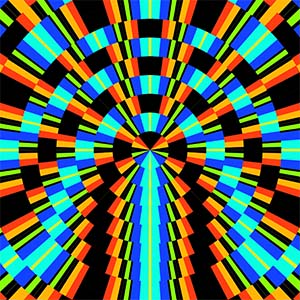

FDVJ:HD:Polarize

Simulates a 2d spherical grid around the dome.


Samples by Isha Hening and archive.org

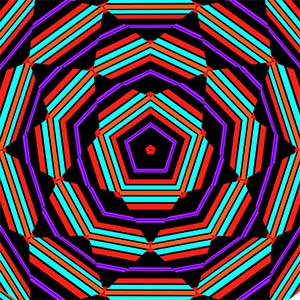

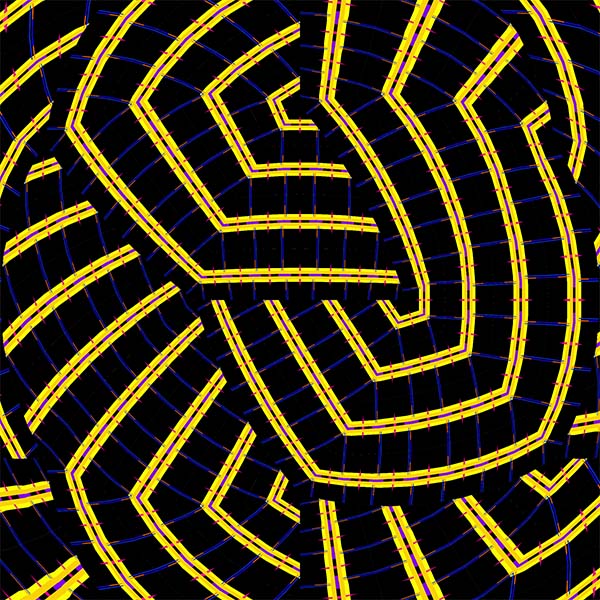

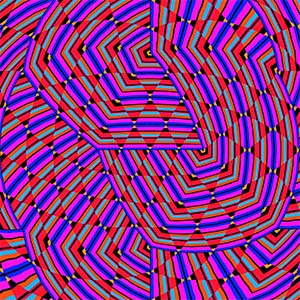

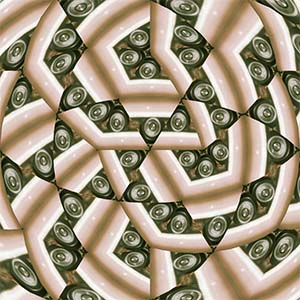

FDVJ:HD:Geodesic

Creates a geodesic structure textured by the video.
Try with the extra Triangloop generator.


Samples by Isha Hening and Roger Sodré

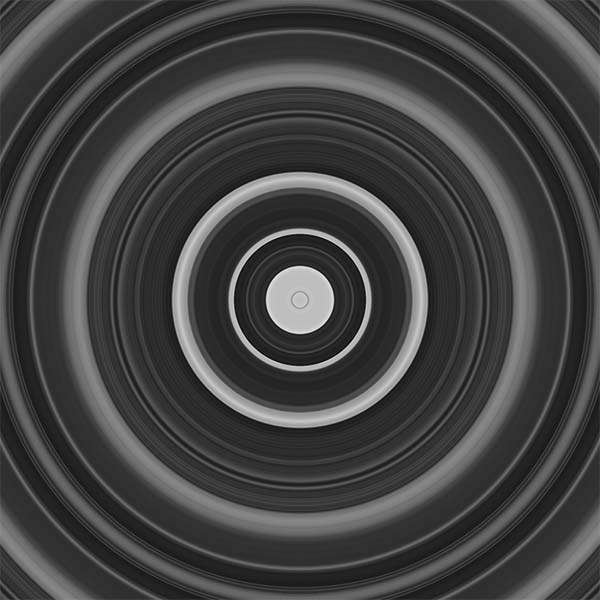

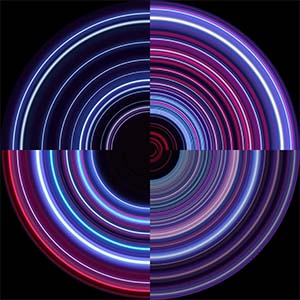

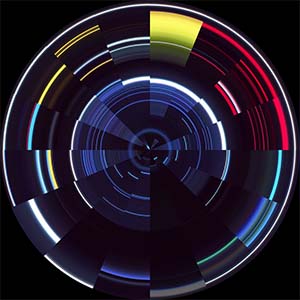

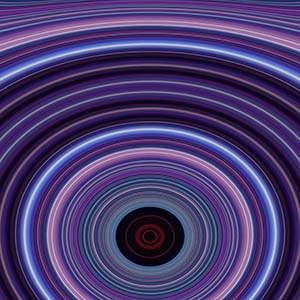

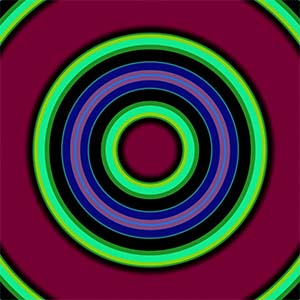

FDVJ:HD:SlitScan

Takes a slice (column or row) from the video and applies it around the zenith.

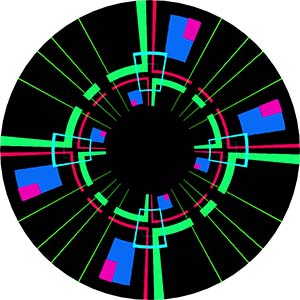

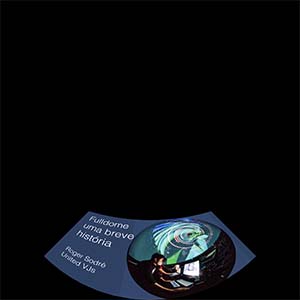

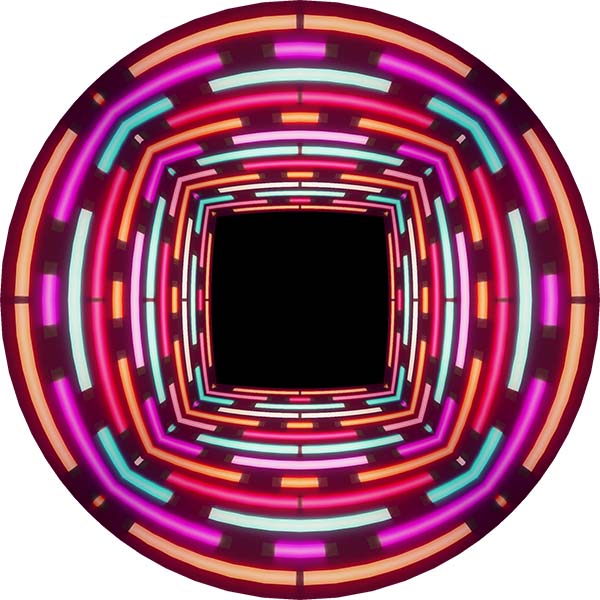

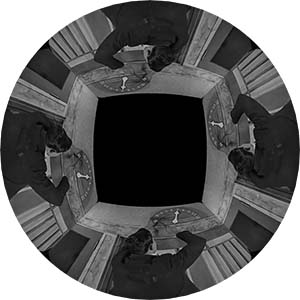

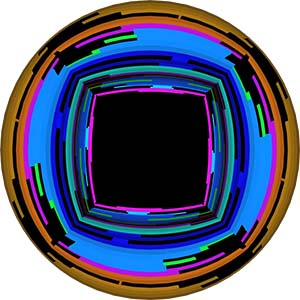

FDVJ:HD:Walls

Builds 4 walls corrected to stay squared. Can also be curved into a cylinder.
Also great for keynotes.

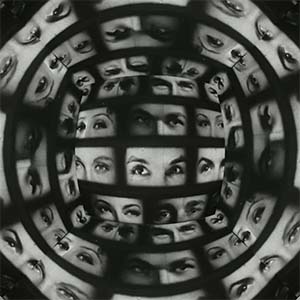

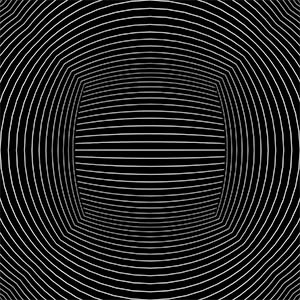

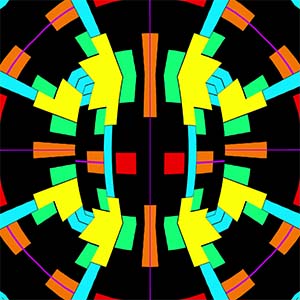

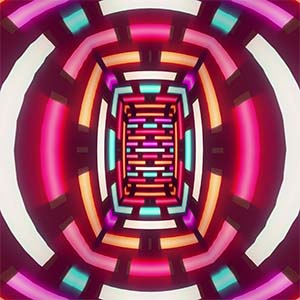

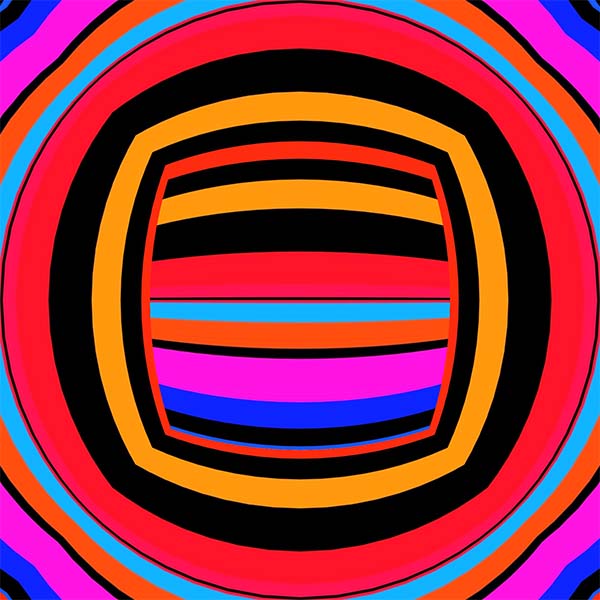

FDVJ:HD:Box

Texture the video inside a cube.

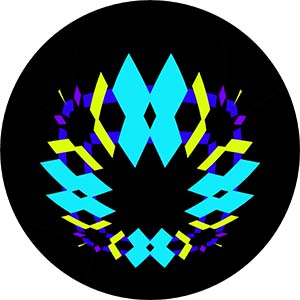

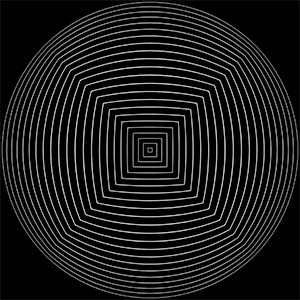

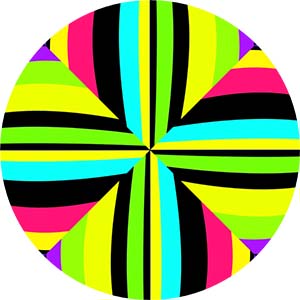

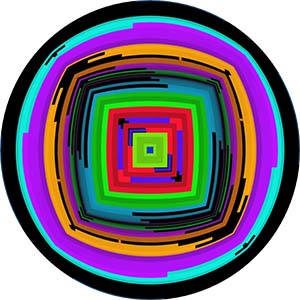

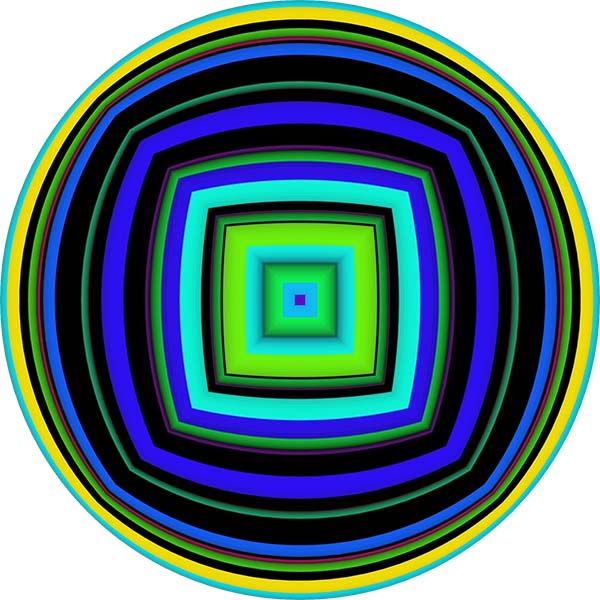

FDVJ:HD:Pyramid

Texture the video inside a pyramid.


Samples by Isha Hening and Roger Sodré

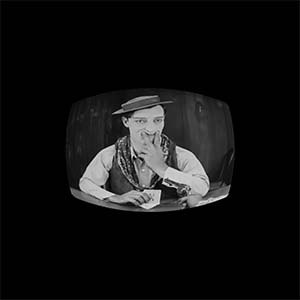

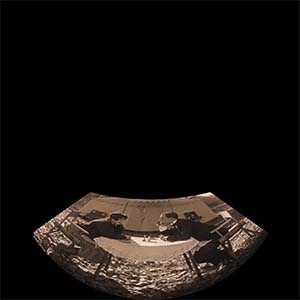

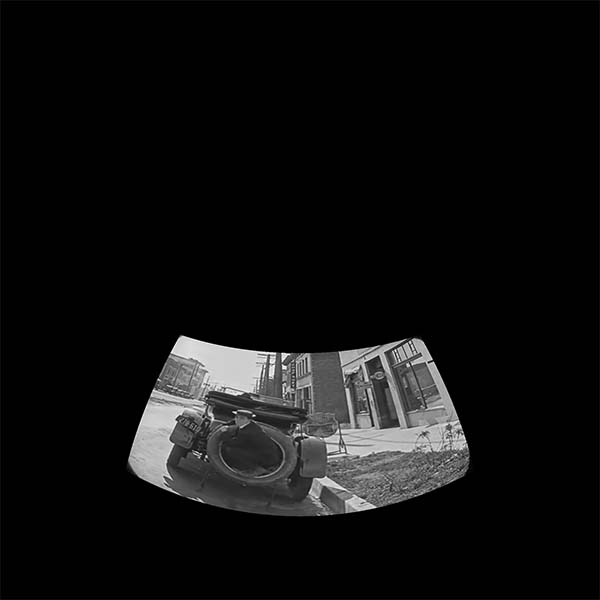

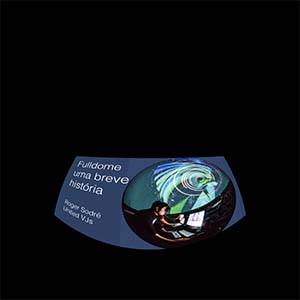

FDVJ:HD:Cinema

Watch movies like a traditional cinema screen. Sitting, standing, or laying down.
Another great for keynotes.


Samples by archive.org

FDVJ:Mix:

Act as a mixer or transition between Domemaster layers (Resolume only)

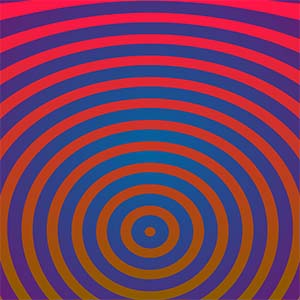

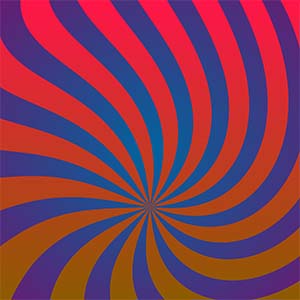

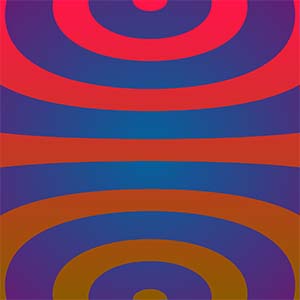

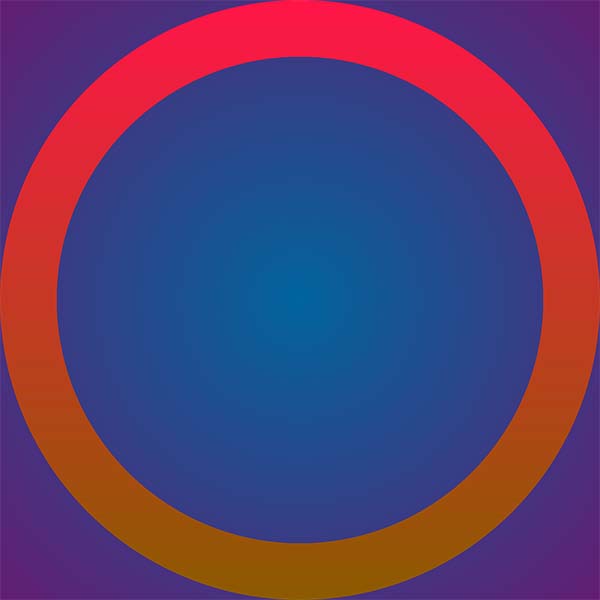

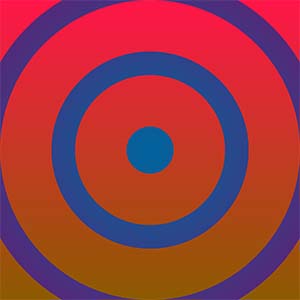

FDVJ:Mix:Lat

Mix two layers opening latitudinal (vertical) windows around the zenith.

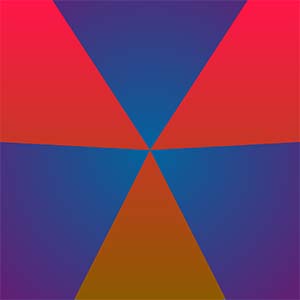

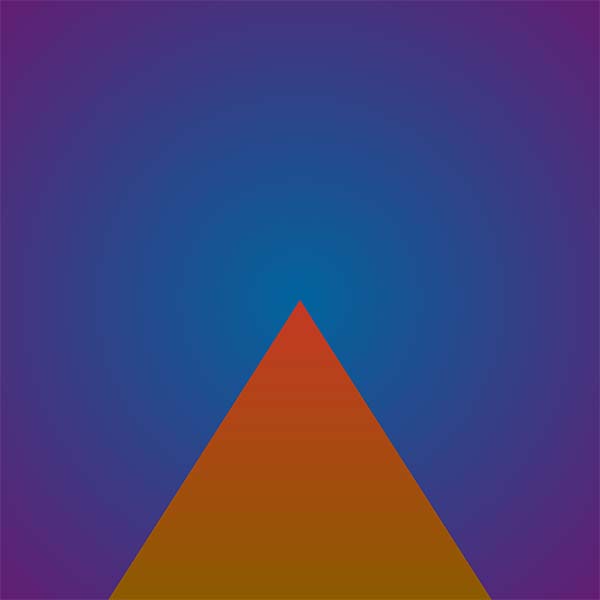

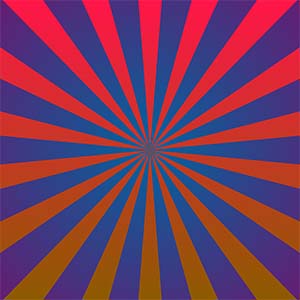

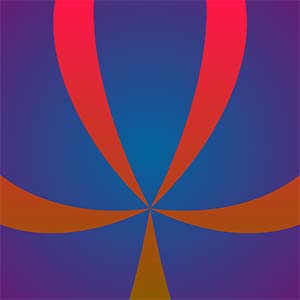

FDVJ:Mix:Long

Mix two layers opening longitudinal (horizontal) windows around the zenith.

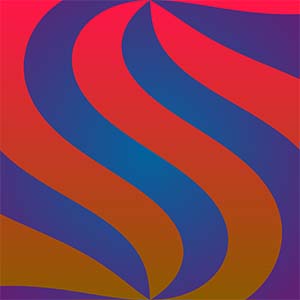

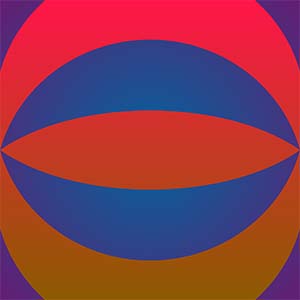

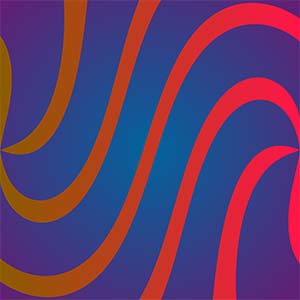

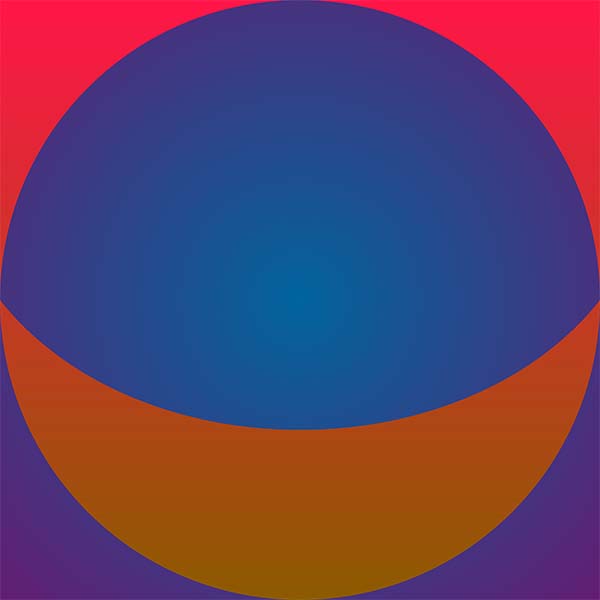

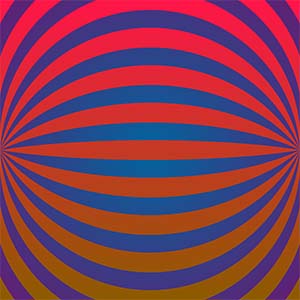

FDVJ:Mix:Roll

Mix two layers opening rolling windows from the front of the dome.

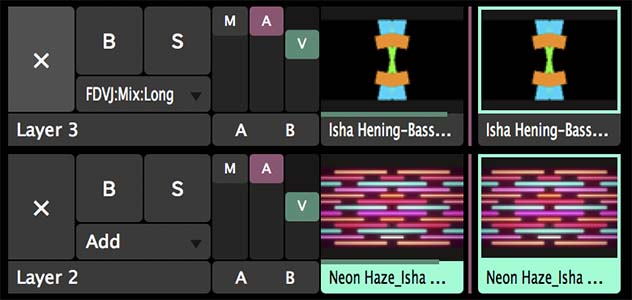

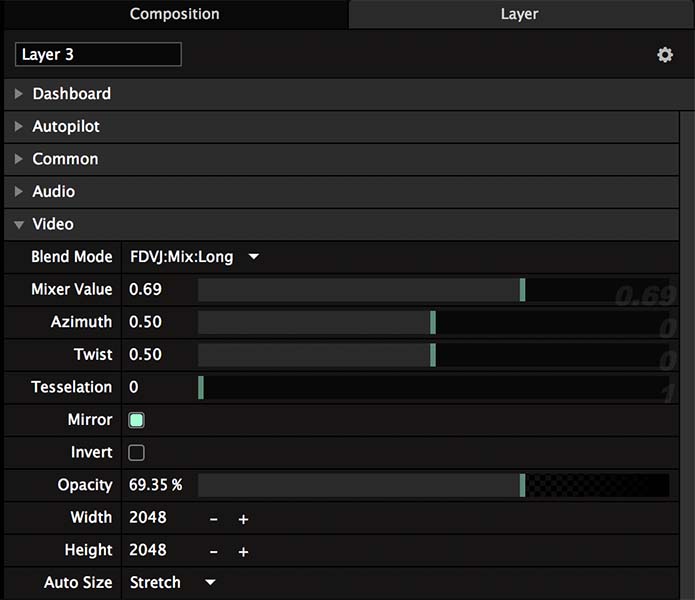

Operating Mixer Plugins

In Resolume, mixers are available from the Blend Modes drop down of each layer.
Mixer parameters are on the Video panel of the layer, above Opacity.

Extra

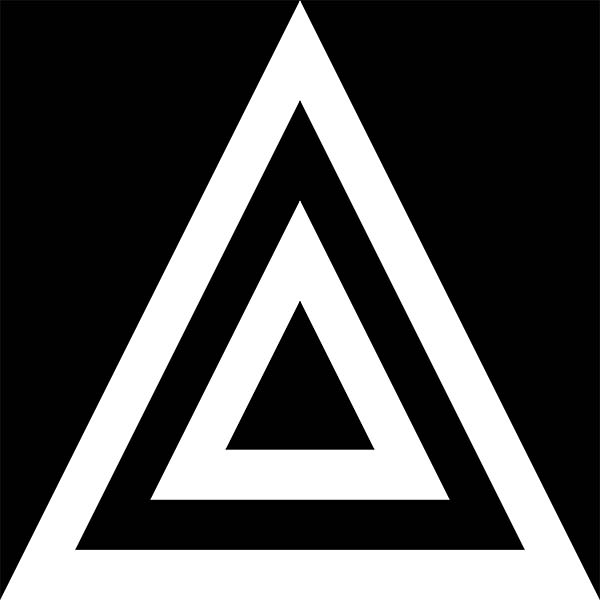

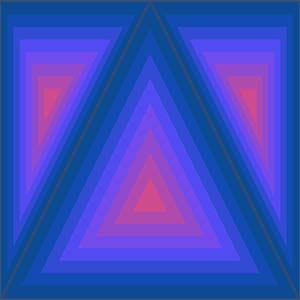

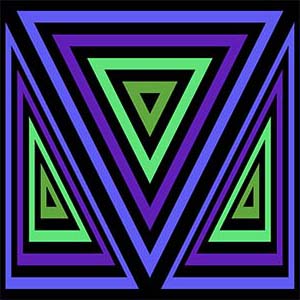

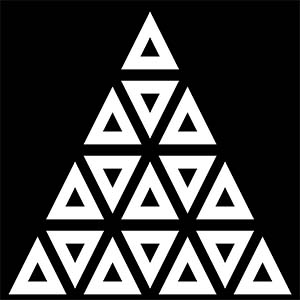

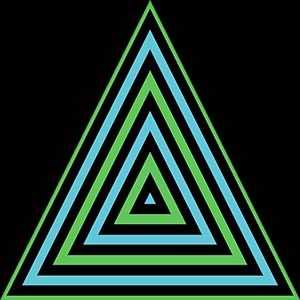

Triangloop

Triangle loops Generator.

Download

Play All You Want

Each FDVJ licence is * Valid for 1 VJ *
Use it anywhere you want!

International €55
Brasil R$200

Setup

Authorize

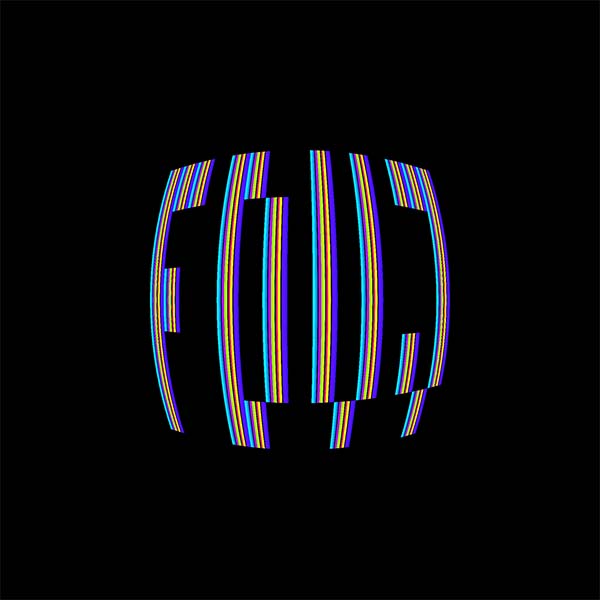

After purchasing, you wll receive an email with your serial and instuctions. Authorize with the included app. When not authorized, you'll see something like the image on the right when using any FDVJ plugin.
Windows deauthorizing? Please check this post.
Any other problems, contact support.

Install on any VJ app that supports FFGL (FreeFrame GL)

Available in 32 and 64 bit versions.

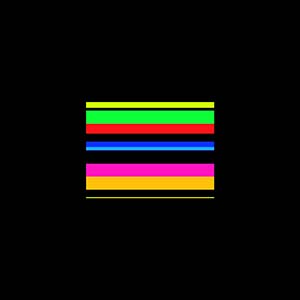

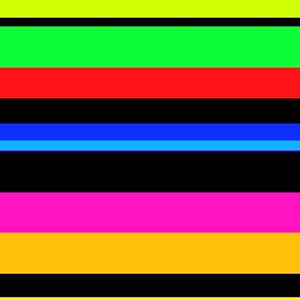

> > > > > Stretch > > > > >

Make sure loops fill the whole frame when using any FDVJ plugin.
The optimal resolution for Fulldome VJing is 2048 x 2048.
Always 1:1!

Resolume Arena/Avenue

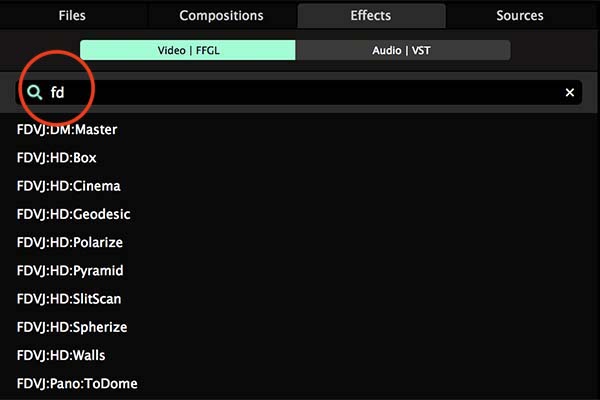

Installing FFGL plugins on Resolume   Using Plugins

Which version to install?
Resolume 7.0.3+: FFGL2
Resolume 6: FFGL1_64
Resolume 5: FFGL1_32

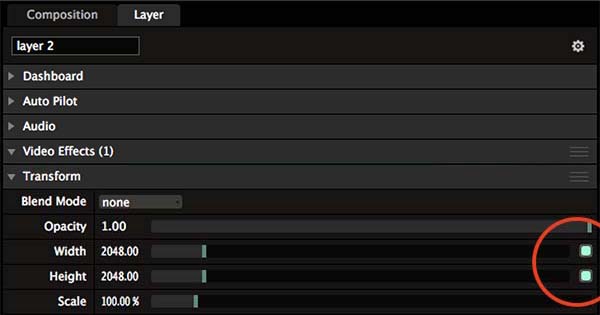

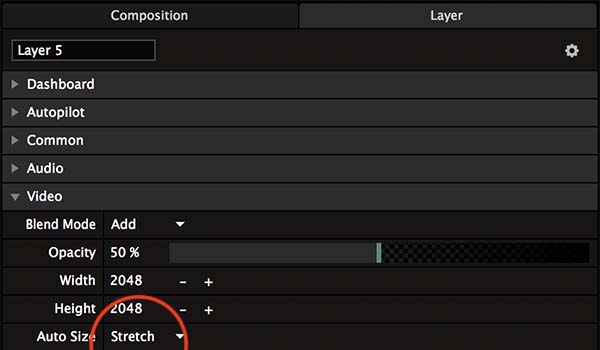

To stretch loops to full frame, the best (only?) way is on Layer settings.
So the recommented way to use FDVJ plugins is to apply it on stretched layers.



Stretch in Arena 6/7

Stretch in Arena 5

VDMX

Installing and using FFGL plugins on VDMX

Which version to install? FFGL1.
How to stretch a layer in VDMX.

CoGe VJ

Installing FFGL plugins on CoGe

Which version to install? FFGL1.

Modul8

Why not Modul8?
TLDR: There's no FFGL support in Modul8
